Product range

Cubicle systems and washroom fittings.

Six panel systems, a full hardware list and the material data you need to write a specification — all manufactured to order at our Johripur, Delhi unit.

12–20 mm

Panel thickness range

SS 304

Standard hardware

10 yrs

Panel warranty

Pan-India

Supply & install

Systems

Choose the panel that matches the traffic.

Each system below shares the same aluminium profile range and fixing detail, so you can mix systems floor by floor without changing the layout grid.

HPL Compact Laminate Cubicle System

The default choice for offices, malls and airports.

12 mm solid compact laminate core, non-porous through the thickness
Aluminium 6063-T6 pilasters, head rail and adjustable legs
40+ laminate finishes: wood grains, solids and stone textures

12 mm core 10-year warranty Class B1 core

Enquire about this system

Phenolic Core Cubicle System

Built for hospitals, stadiums and industrial blocks.

13 mm phenolic resin core with high impact resistance
Antibacterial finish options for clinical and food areas
Selection of concealed fixing for vandal-resistant installs

13 mm core High impact Antibacterial

Enquire about this system

Stainless Steel 304 Cubicle System

For washrooms that get hosed down.

Grade 304 sheet panels with fully welded or folded edges
Compatible with floor-to-ceiling wet area detailing
Ideal for pharma plants, breweries, kitchens and laundries

SS 304 Washable 7-year warranty

Enquire about this system

Toughened Glass Cubicle System

Premium finish for lobbies and hospitality.

10 mm or 12 mm toughened glass with SS spider fittings
Frosted, fluted or clear glass with options for privacy film
Floor springs and patch fittings in mirror-polished SS 304

10 / 12 mm SS fittings 5-year warranty

Enquire about this system

uPVC Cubicle System

Cost-controlled cubicles for schools and hostels.

20 mm extruded uPVC panels that resist water and termites
Light weight, quick to install and easy to re-configure
Supplied with nylon hardware and aluminium reinforcements

20 mm panel Termite proof 5-year warranty

Enquire about this system

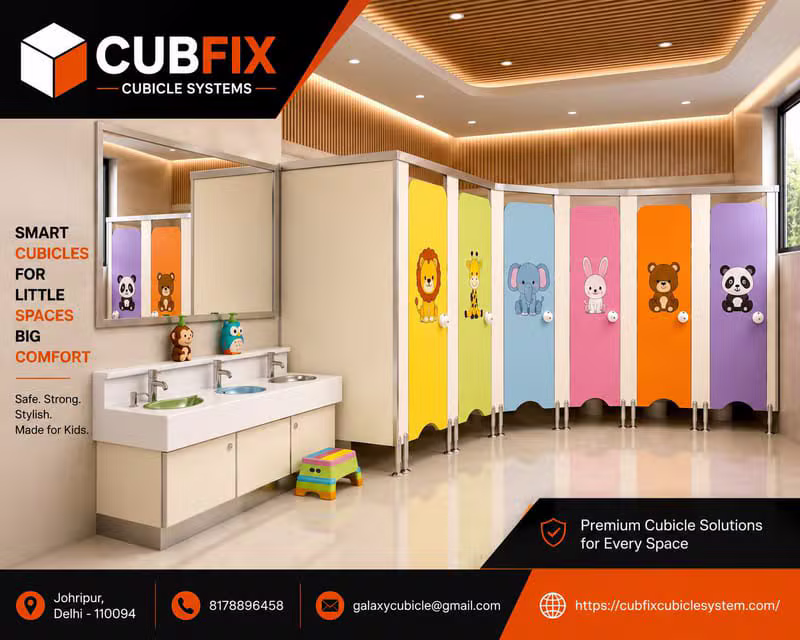

Kids & Shower Cubicle System

Purpose-built for children and wet zones.

Reduced-height doors and pilasters for junior and pre-primary blocks
Shower enclosures with floor-to-ceiling panels and drainage detailing
Bright, safe finishes with rounded profiles for school washrooms

Reduced height Wet zone Custom sizes

Enquire about this system

Material data

Compare panels before you specify.

Warranty periods below are for panel performance under normal washroom use. Hardware is covered separately for three years from handover.

Comparison of Cubfix cubicle panel materials, thickness, recommended use, water resistance and warranty
Panel material	Thickness	Recommended for	Water resistance	Panel warranty
HPL compact laminate	12 mm	Offices, malls, airports	100% waterproof	10 years
Phenolic core	13 mm	Hospitals, stadiums, factories	100% waterproof	10 years
Stainless steel 304	1.0 – 1.2 mm sheet	Pharma, food plants, kitchens	Fully washable	7 years
Toughened glass	10 / 12 mm	Corporate lobbies, hotels	Waterproof with seals	5 years
uPVC	20 mm	Schools, hostels, budget builds	Waterproof	5 years
Aluminium framed panels	18 mm infill	Industrial blocks, workshops	Waterproof	5 years

Swipe the table sideways to see all columns.

Hardware, fittings and accessories

Pilasters, doors & head rails

Locks & occupancy indicators

Hinges, hooks & hardware

Shower & changing cubicles

Urinal screens & dividers

Vanity and handwash units

Kids & accessible cubicles

As-built drawings & manuals

Free site survey

Tell us about the washroom. We will price it properly.

Send your requirement and we will respond within one working day with a suggested system, a quantity-wise estimate and the next available survey date.

No charge for site measurement and layout
GST invoice with itemised hardware schedule
Warranty documents issued at handover

+91 81788 96458 · Johripur, Delhi – 110094
